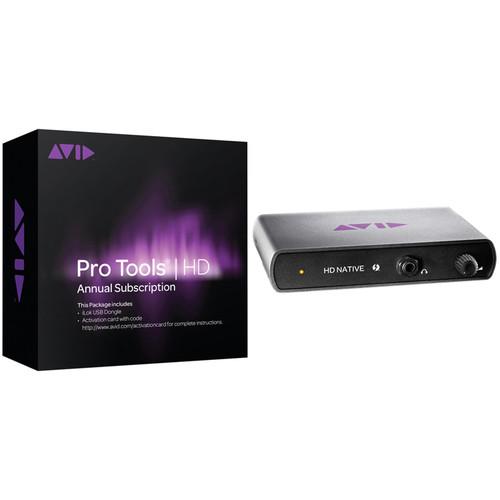

User Manual for Avid Pro Tools | HD Native Thunderbolt Interface with Pro Tools HD Software Click to enlarge the picture
Contents of the user manual for the Avid Pro Tools | HD Native
- Product category: Audio Interfaces & Systems Avid
- Brand: Avid
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Avid Audio Interfaces & Systems
|
User manual for the Avid Pro Tools | HD Native contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Avid product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Avid user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Avid product will considerably shorten its lifespan!
|
Product description The Avid Technologies Pro Tools | HD Native Thunderbolt Interface with Pro Tools HD Software includes a Pro Tools | HD Native Thunderbolt interface and a full, perpetual license version of Pro Tools | HD, offered as a download.Designed for on-the-go music creation, the Pro Tools | HD Native Thunderbolt interface brings high-speed Thunderbolt connectivity to your Pro Tools | HD system to nearly eliminate latency, and provide 64 channels of simultaneous I/O at 24-bit / 192 kHz. The card easily connects to your existing laptop or compact computer and significantly reduces that distracting delay you hear while recording, leading to a more comfortable experience when performing in the studio.To get a full 64 channels of I/O, the Pro Tools | HD Native Thunderbolt interface allows you to connect up to four, 16-channel Pro Tools | HD audio interfaces. Two of the interfaces connect directly to DigiLink Mini ports 1 and 2, and the other two interfaces connect to the expansion ports on those Pro Tools | HD audio interfaces.Pro Tools | HD is designed for audio and post pros who need maximum track counts, high-level performance, and surround sound. It provides powerful and efficient tools to create music or sound for film/TV, and connect with a premier network of artists, producers, and mixers around the world via Avid Cloud.The software comes bundled with a 1-year Annual Upgrade and Support Plan, which provides access to the latest Pro Tools releases, including updates and upgrades, 25 bonus plug-ins, and priority support (renewable annually). Note: An iLok USB Key is required for software authorization (available separately) - Pro Tools | HD Native Thunderbolt Interface
-
- Thunderbolt interface can be connected to a laptop or compact computer for on-the-go music creation (Mac, Windows)
- Monitoring with near-zero latency
- Includes two DigiLink Mini ports for connecting two audio interfaces
- One DigiSerial port for connecting a SYNC peripheral
- Supports up to 64 channels of I/O for direct-to-disk recording and playback
- Supports up to 192 tracks with Pro Tools | HD software
- Sessions up to 24-bit and up to 192 kHz
- On-board FPGA processor provides dedicated signal routing for headphone monitoring
- Headpnone monitoring with 1/4" output jack and a volume/mute control knob
- Output to the headphone jack mirrors channel outputs 1 and 2 on your primary audio interface
- Includes a 6.5' Thunderbolt cable
- Includes a 12' DigiLink Mini cable for connection to an audio interface
- Pro Tools | HD Software
-
- 64 channels of I/O
- 32-bit / 192 kHz sound quality
- Up to 256 audio tacks
- Up to 256 instrument tracks
- Up to 512 MIDI tracks
- 2 GB loop library included
- 60+ instrument/effects plug-ins
- Play/edit HD video in timeline
- Support for Dolby Atmos 7.1 surround sound
- Music notation tools
- Standalone operation
- Includes 1-year upgrade and support plan
- Mac, Windows, AAX native, Audiosuite
In the Box Avid Pro Tools | HD Native Thunderbolt Interface with Pro Tools HD Software Pro Tools | HD Native Thunderbolt Interface 6.5' Thunderbolt Cable 12' DigiLink Mini Cable Limited 1-Year Warranty for Card Software Activation Card for Pro Tools | HD Software (Perpetual License, Download) Table of Contents
|
Upload User Manual
Have you got an user manual for the Avid Pro Tools | HD Native Thunderbolt Interface with Pro Tools HD Software in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAvid 99356530702 Specs | | | System Requirements | Qualified Mac or Windows computer running Pro Tools | HD software or third-party CoreAudio-compatible software | | Ports | 2 x DigiLink Mini ports
1 x DigiSerial port (8-pin mini-DIN) 1 x Thunderbolt | | I/O | Supports up to 64 channels of I/O | | Tracks | Supports up to 256 tracks | | Audio Resolution | Up to 24-bit / 192 kHz | | Processor | On-board FPGA, with reset switch | | Headphone Monitoring | 1/4" / 6.3 mm stereo headphone jack
Volume/mute control knob | | Power | Thunderbolt bus
AC adapter (available separately) | | | | System Requirements | Mac OS X 10.9.5, 10.10.5, 10.11.6, 10.12.2
Intel Core i7 processor (Ivy Bridge, Haswell, Westmere recommended)
8 GB RAM (16 GB or more recommended)
15 GB disk space for installation
2 GB additional space required for loop library installation (optional)
USB port for iLok 2 or iLok 3 authorization (iLok included)
PCIe slot for HDX or HD Native card (including one power connection on motherboard) or Thunderbolt port for HD Native, supported PCIe chassis or Core Audio-supported audio device
Internet connection for installation
Supports 64-bit AAX Native, AAX AudioSuite plug-ins
Windows 7 (Home Premium, Professional, Ultimate 64-bit Editions), Windows 8/8.1 (Standard, Pro 64-bit
Intel Xeon processor
Editions), Windows 10 (Home, Pro, Enterprise 64-bit Editions)
8 GB RAM (16 GB or more recommended)
15 GB disk space for installation
2 GB additional space required for loop library installation (optional)
USB port for iLok 2 or iLok 3 authorization (iLok included)
PCIe slot for HDX or HD Native card (including one power connection on motherboard) or ASIO-supported audio device
Internet connection for installation
Supports 64-bit AAX Native, AAX AudioSuite plug-ins |
